Saturated line [PRO/EX]

Displayed items vary depending on the selected tool or sub tool.

→ "When the Saturated line sub tool or Flash sub tool is selected"

→ "When the Object sub tool is selected"



When the Saturated line sub tool or Flash sub tool is selected

Allows you to configure the destination layer for the saturated line, angle and the like when the [Saturated line] sub tool or [Flash] sub tool is selected.

(1)   Destination layer

Allows you to select the destination layer for the saturated line.

Draw on editing layer	Draws the saturated line directly on the selected layer. When a [Saturated line] layer is selected, allows you to redraw the reference line while keeping the settings of the already drawn saturated line.
Always create saturated line layer	Creates a new [Saturated line] layer to draw the saturated line.
Draw on saturated line layer	When a [Saturated line] layer is selected, allows you to redraw the reference line while keeping the settings of the already drawn saturated line. When other than a saturated line layer is selected, creates a new saturated line layer to draw the saturated line.

When drawn on a [Saturated line] layer, the settings of a saturated line can be changed even after drawn.

(2)   Tone

When turned on, applies tone to the saturated line. When tone is applied, the expression color of the layer becomes gray.

(3)   Use radial line ruler for center

When snap to radial line ruler or radial curve ruler is turned on, you can draw the saturated line centered along the ruler.

(4)   Make curve

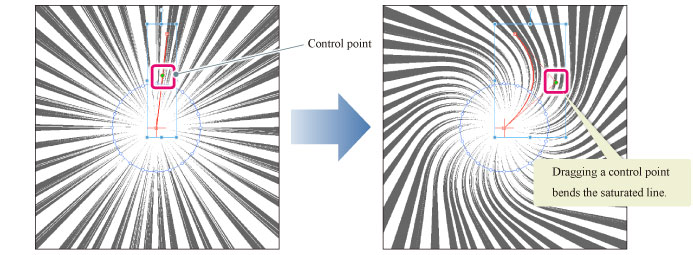

When turned on, control points to adjust the curve are added to the shape line of the saturated line. You can then change the shape of the saturated line by editing the control points with the [Object] sub tool.

(5)   Fill center

Fills the area enclosed by the reference line.

·Reference line is a line specified when drawing a saturated line, and serves as the reference position to draw the saturated line, for example. When specified to be circular, the circle becomes the reference line. ·Turning on [Make the reference position jags] fills the reference position with jagged paint line.

(6)   Fill opacity

Configures the opacity of the fill color when [Fill center] is turned on.

(7)   Line color

Specify the color for the saturated line.

Main color	Configures the main drawing color as the saturated line color.
Sub color	Configures the sub drawing color as the saturated line color.
User color	Configures the color specified by the user as the saturated line color. Selecting a color with a color palette, eyedropper and the like, and clicking the icon allows you to configure the color. The con­figured color is not affected by changes in the main drawing color and sub drawing color, even when changed before the line is drawn.
Select user color	The [Color settings] dialog box is displayed, where you can select the saturated line color. This item does not display as icon.

(8)   Fill color

Specify the fill center color.

Main color	Configures the main drawing color as the fill color.
Sub color	Configures the sub drawing color as fill color.
User color	Configures the color specified by the user as the fill color. Selecting a color with a color palette, eyedropper and the like, and clicking the icon allows you to configure the color. The configured color is not affected by changes in the main drawing color and sub drawing color, even when changed before the line is drawn.
Select user color	When the [Color settings] dialog box is displayed, you can select the fill center color. This item does not display as icon.



When the Object sub tool is selected

Allows you to configure the expression color for the saturated line and ground when a saturated line is selected with the [Object] sub tool.

(1)   Main color

Configures the main drawing color for the saturated line. Clicking the color indicator displays the [Color settings] dialog box where you can set the color.

For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box" .

(2)   Sub color

Specifies the sub drawing color for the saturated line. Clicking the color indicator displays the [Color settings] dialog box where you can set the color.

For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box" .

(3)   Fill center

Fills the area enclosed by the reference line.

·Reference line is a line specified when drawing a saturated line, and serves as the reference position to draw the saturated line, for example. When specified to be circular, the circle becomes the reference line. ·Turning on [Make the reference position jags] fills the reference position with jagged paint line.

(4)   Fill opacity

Configures the opacity of the fill color when [Fill center] is turned on.
