Print [Windows/macOS]

Print your file.

1Select the [File] menu > [Print] to open the dialog box for printing.

2Set up the print settings in this dialog box. The below example is the dialog box that appears on Windows devices.

(1)  Select a printer.

(2)  Enter the number of copies to print.

(3)  Click the [Print] button to display the [Print preview] dialog box.

·The dialog box for printing depends on your OS and printer. ·On macOS, the [Print resolution] dialog box will appear when you select [Execute print] from the [Print] dialog box. Confirm the print resolution and click [OK] to start printing. The [Print resolution] dialog box references the resolution of the printer connected to the computer. However, you can change these settings if necessary. ·With EX, you can specify the page area to print.

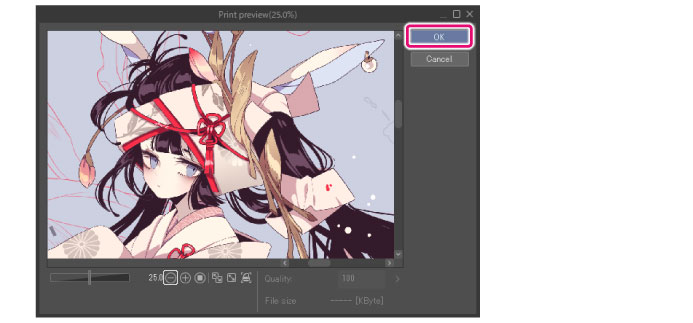

3Check the preview on the [Print preview] dialog box. Click [OK] to start printing.

The [Print preview] dialog box will not appear if [Preview rendering result on output] is turned off in the [Print Set­tings] dialog box. You can start printing from from the dialog box for printing.

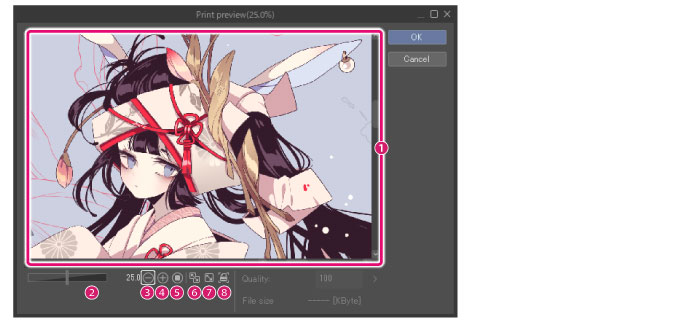

[Print preview] Dialog Box

Click the [Print] button in the [Print] dialog box to open the [Print preview] dialog box.

The [Print preview] dialog box will not appear if [Preview rendering result on output] is turned off in the [Print Set­tings] dialog box.

(1)  Image preview

Shows a preview of the printed image. You can drag the image preview to adjust the display position.

(2)  Scaling slider

By dragging the slider, you can adjust the scale of the [Image preview]. Dragging to the right scales up the image while dragging to the left scales down the image. You can also click the numeric value to directly enter the scale.

(3)  Zoom out

Click to zoom out of the image preview.

(4)  Zoom in

Click to zoom in to the image preview.

(5)  100%

Click to display the image preview at 100%.

(6)  Fit to navigator

Click to display the image preview to fit to the window size. When the size of the [Image preview] window is adjusted, the image preview will change size accordingly.

(7)  Fit to Screen

Click to fit the previewed image to the [Image preview] window size. When the size of the [Image preview] window is adjusted, the image preview will not change size.

(8)  Print size

Clicking it shows the Print size in the [Image preview].

A message is displayed when executing this command if a display resolution is not set. Clicking [OK] shows the [Settings of display reso­lution] dialog, where you can set a display resolution. For details on the [Settings of display resolution] dialog box, see "Display resolu­tion".
