Import
You can import image files, pattern image files, and so on.
Imports an image file to a new layer above the current layer.
|
|
·If you import an image while there is a selection area on the canvas, the image will be imported to the selection area. ·You can also import an image file by dragging and dropping it to the [Layer] palette. |
1Select the [File] menu > [Import] > [Image].
2The [Open] dialog box opens. Select the image to import.
|
|
You can import multiple images at once by selecting multiple images in the [Open] dialog box. |
3The image will be imported to a new image layer above the current layer.
|
|
To draw on a layer with an imported image, the layer must be rasterized. For details, see "Rasterize". |
4You can change the transformation method in the [Tool Property] palette.
|
|
For details on the setting method, see the descriptions of "Transformation settings" and "Image material" in "CLIP STUDIO PAINT Tool Setting Guide". |

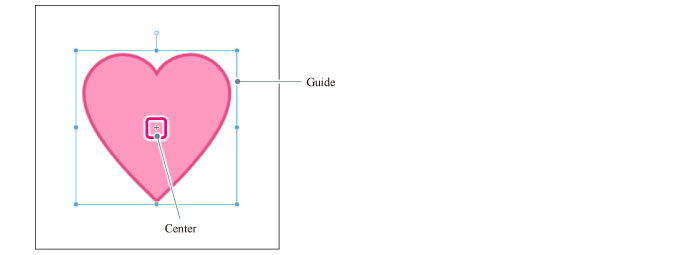

5Guide lines are shown on the Canvas. Use the handles and control points on the bounding box to adjust the image’s orientation, size, and shape.
|
|

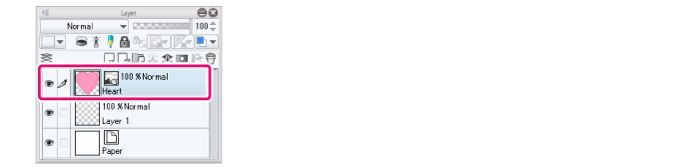

You can adjust the image afterwards. (1) On the [Layer] palette, select the layer with the imported image. (2) On the [Tool] palette, select the [Operation] tool. (3) On the [Sub tool] palette, select [Object]. |
|
|
You can repeatedly tile imported images. For details, see the Tiling section of the CLIP STUDIO PAINT Tool Setting Guide. |
Scaling an image

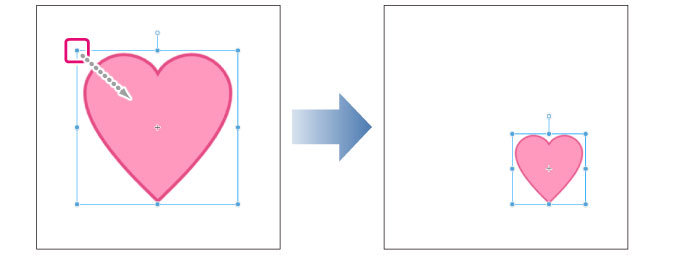

If the transformation mode is set to [Scale/Rotate] in the [Tool Property] palette, you can scale an image by dragging the handles.
|
|
·To transform only the vertical length or horizontal length, turn off [Keep aspect ratio] in the [Tool Property] palette. ·Even if [Keep aspect ratio] is turned off, you can scale without changing the original ratio by holding down Shift while dragging. ·Dragging while holding down Alt allows you to scale the image up and down the image from the center point. |
Rotating an image

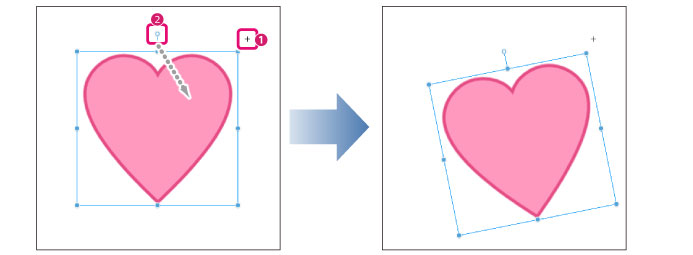

Dragging the rotation handle allows you to rotate the image.
(1) Move the center point (+).
(2) Drag the rotation handle to rotate the image around the center point.
|
|
·Hold down Shift while dragging the center point to move the center point horizontally, vertically, or along a 45-degree diagonal angle. ·Hold down Shift while dragging the rotation handle to rotate in increments of 45 degrees. ·If the transformation mode is set to [Scale] in the [Tool Property] palette, the rotation handle will not show. This is shown when you select other items. |
Free transform an image

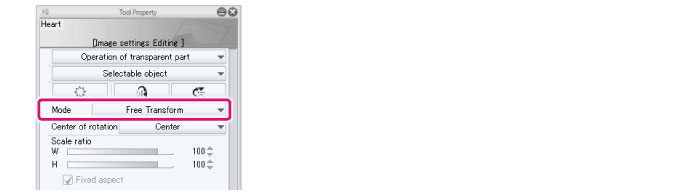

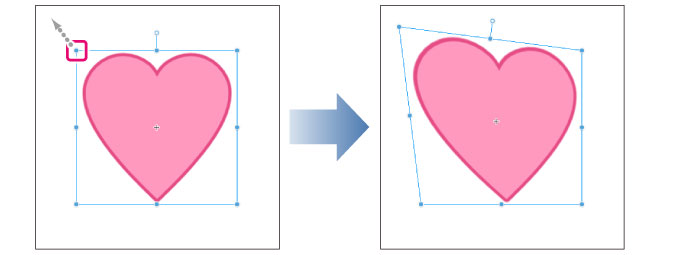

If the transformation mode is set to [Free Transform] in the [Tool Property] palette, you can freely transform the image by dragging the handles. You can use this when you want to create the appearance of depth.
|
|
Hold down Shift while dragging a handle to move the handle according to the direction of the guideline. |
Other Transformations

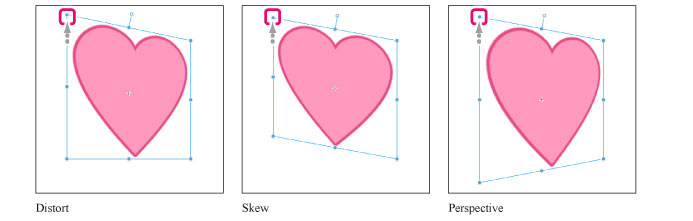

You can set [Distort], [Skew], and [Perspective] from the [Tool Property] palette.
Moving an image
Drag the drawing area or the bounding box to move the image.
|
|
Hold down Shift while dragging the drawing area or bounding box to move the image horizontally, vertically, or along a 45-degree diagonal angle. |
