Stream line [PRO/EX]
Displayed items vary depending on the selected tool or sub tool.
→ "When the stream line sub tool is selected"
→ "When the Object sub tool is selected"
When the stream line sub tool is selected
Allows you to configure the destination layer for the stream line, angle and the like.
(1) Destination layer
Allows you to select the destination layer for the stream line.
|
Draw on editing layer |
Draws the stream line on the selected layer. |
|
Alwayscreate stream line layer |
Creates a new [Stream line] layer to draw the stream line. When drawn on a [Stream line] layer, the settings of a stream line can be changed even after drawn. |
|
Draw on stream line layer |
When a [Stream line] layer is selected, allows you to redraw the reference line while keeping the settings of the already drawn stream line. You can change the position of the reference line of the stream line, or add a reference line to only a portion of the stream line. When other than a stream line layer is selected, creates a new stream line layer to draw the stream line. |
(2) Tone
When turned on, applies tone to the stream line. When tone is applied, the expression color of the layer becomes gray.
(3) Use parallel line ruler for angle
When snap to parallel line ruler or Multiple curve ruler is turned on, draws the stream line at an angle matching that of the ruler.
(4) Make curve

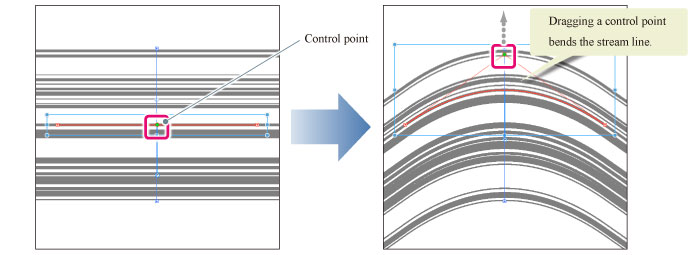

When turned on, control points to adjust the curve are added to the shape line of the stream line. You can then change the shape of the stream line by editing the control points with the [Object] sub tool.
(5) Angle
Specifies the angle of the stream line.
|
|
If [Use parallel line ruler for angle] is turned on, the ruler angle takes precedence. |
When the Object sub tool is selected
Allows you to configure the expression color for the stream line and ground when a stream line is selected with the [Object] sub tool.
(1) Main color
Configures the color of the stream line. Clicking the color indicator displays the [Color settings] dialog box where you can set the color.
|
|
For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box" . |
(2) Sub color
Specifies the sub drawing color for the stream line. Clicking the color indicator displays the [Color settings] dialog box where you can set the color.
|
|
For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box" . |
(3) Angle
Specifies the angle of the stream line.
