Setting a color mode for light table layers

You can set the color mode of the light table layers registered in the Animation Cels palette. Set the layer color so that content drawn on light table layers can be seen easily

1Select the cel

Select the light table layer that you want to change the color mode for from the [Light table specific to cel] on the Animation Cels palette.

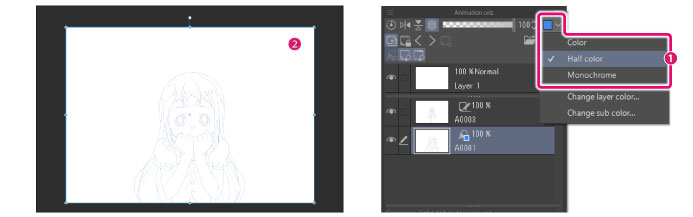

2Set color mode

It is possible to set a color mode for light table layers.

(1)  Click [Color mode] and select a mode from [Color], [Half color] and [Monochrome].

(2)  The selected color mode is applied to the light table layer.

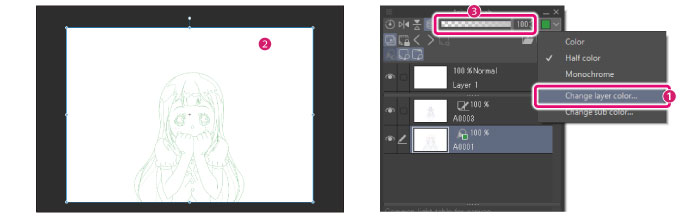

3Configuring the layer color

If [Half color] or [Monochrome] is set as the color mode, a layer color can be set.

(1)  Click [Color mode], select [Change layer color] and select the color to be set as the layer color from the [Color settings] dialog box.

(2)  The selected layer color is applied to the light table layer.

(3)  Adjust [Opacity] as necessary.

If [Monochrome] is set as the color mode, a sub color can be set from [Change sub color]. Color modes can be set either in the Layer Property palette or in the selected light table layer. For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box".
