Paste a 3D Material
The following describes the procedure to paste a 3D material to the canvas.
1Paste the 3D character material
Paste the 3D character material to the canvas.
(1) On the [Tree view], select [3D] > [Character].
(2) Select the character and drag and drop it to the canvas.
|
|
·Materials can also be pasted to the canvas by clicking [Paste material] on the Material palette. ·A confirmation message saying "Do you want to start CLIP STUDIO and download it?" may appear when using some 3D materials for the first time. In this case, click [Yes] to download the 3D material. After downloading, the material can be used as normal. ·3D materials are automatically registered to the Item Bank palette when imported from the Material palette. However, 3D materials compatible with Version 1.5 are not registered. ·When using a Smartphone, select the grip on the material thumbnail and drag and drop it to the canvas. |

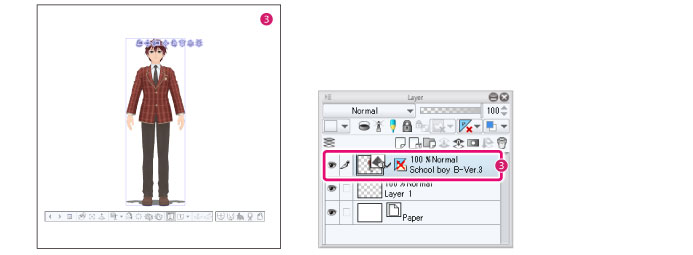

(3) The 3D character material is pasted to the canvas, and a 3D layer created in the Layer palette.
|
|
Creating a 3D layer also creates a three-point perspective ruler at the same time. The perspective ruler is hidden immediately after the creation of the 3D layer. For details on how to use a perspective ruler, see "Explanation: Perspective ruler [PRO/EX]". |
2Paste 3D Object Materials
Paste 3D object materials to the canvas.

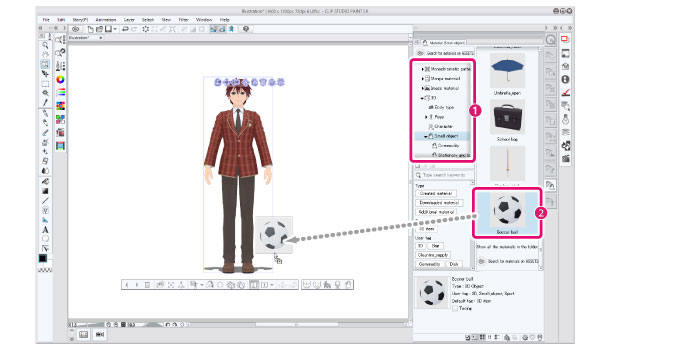

(1) On the [Tree view], select [3D] >[Small object].
(2) Select the 3D object material and drag and drop it to the canvas.

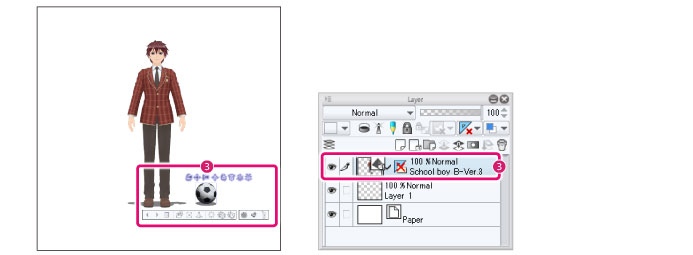

(3) The 3D object material is pasted to the canvas. The material will be added to the existing 3D layer, so a new 3D layer will not be created.
|
|
·You can manage multiple 3D materials in one 3D layer. To create a 3D layer for each 3D material, paste the 3D material after selecting other than a 3D layer on the Layer palette. ·3D materials compatible with Version 1.5 and 3D materials from Ver. 1.6.0 and later are created as separate 3D layers. They cannot be managed in the same 3D layer. |
|
|
When pasting large 3D materials, other 3D materials may be hidden. Operate the Movement manipulator of the pasted material and move until the other 3D materials become visible. For details on how to use the movement manipulator, see "Operations Using the Movement Manipulator". |
3Select the tool

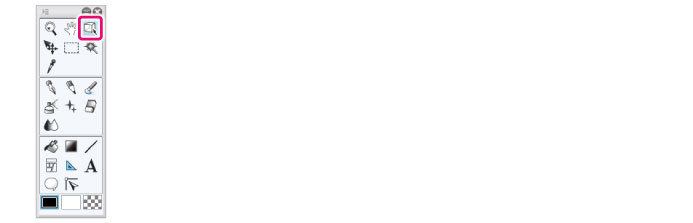

On the Tool palette, select the [Operation] tool.
4Adjust the 3D material

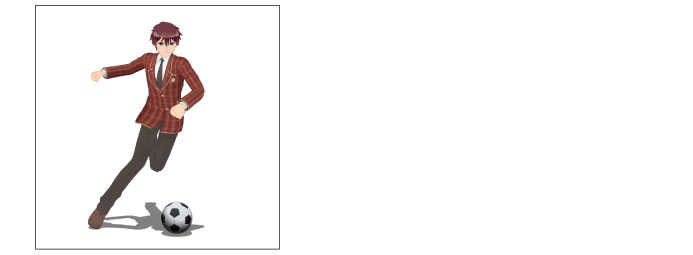

Open the Sub Tool palette to select [Object] and adjust the position and pose of the 3D material.
|
|
·For how to adjust the position of the 3D materials, see "Positioning 3D Object Materials" and "Deciding the Position and Pose of a 3D Character/3D Drawing Figure". ·3D drawing figures can be pasted on the canvas in a similar fashion. ·In EX, you can also paste 3D materials to the canvas by dragging and dropping the 3D material into the All Sides View palette. You can also edit 3D materials while viewing them from four directions using the All Sides View palette. |
