Rectangle Balloons

You can change the settings of the [Ellipse balloon] tool to create a rectangle balloon.

1Select [Balloon] tool → [Ellipse balloon] from the [Tool] palette.

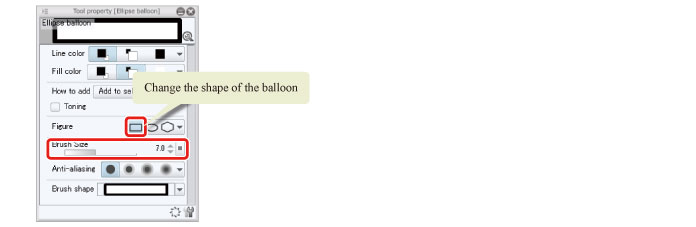

2Change [Figure] to [Rectangle] in the [Tool Property] palette. Change the [Brush Size] to the desired value.

3Click and drag in the desired location to draw a rectangle balloon.

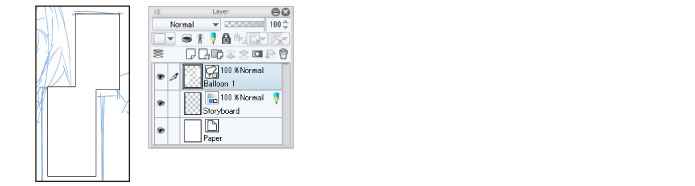

You can draw two overlapping balloons to create two rectangles joined together as shown below.

To draw a freehand balloon or a balloon whose shape cannot be created easily with the [Text] tool, create a new [Raster layer] and draw it directly using tools such as the [Pen] tool.
